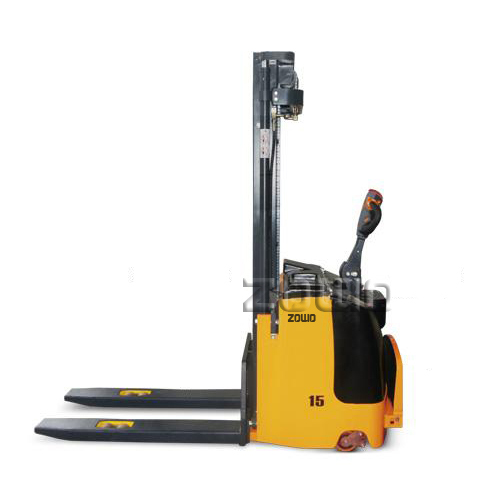

三级门架全电动踏板堆高车

产品型号：zw20389
额定载重：0 - 1500(kg)
起升高度：4500 - 5000(mm)
企业邮箱：sales@zowosh.com

咨询电话

400-879-2697

在线咨询

工作时间：8:30 ~ 17:30

产品介绍
技术参数

相关产品
荣誉客户

基本文件流程错误 SQL 调试

/home/zowoshmziomw5o0sth/wwwroot/index.php ( 1.62 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/ThinkPHP.php ( 4.80 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Think.class.php ( 12.65 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Storage.class.php ( 1.42 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Storage/Driver/File.class.php ( 3.68 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Mode/common.php ( 2.89 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Common/functions.php ( 54.98 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Common/function.php ( 61.40 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Hook.class.php ( 5.47 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/App.class.php ( 12.65 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Dispatcher.class.php ( 15.48 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Route.class.php ( 13.69 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Controller.class.php ( 11.25 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/View.class.php ( 8.18 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/BuildLiteBehavior.class.php ( 3.78 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/ParseTemplateBehavior.class.php ( 3.98 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/ContentReplaceBehavior.class.php ( 1.99 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Conf/convention.php ( 11.34 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Conf/config.php ( 5.04 KB )
/home/zowoshmziomw5o0sth/wwwroot/data/conf/db.php ( 0.35 KB )
/home/zowoshmziomw5o0sth/wwwroot/data/conf/config.php ( 0.56 KB )
/home/zowoshmziomw5o0sth/wwwroot/data/conf/route.php ( 0.02 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Conf/alias.php ( 0.78 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Conf/tags.php ( 0.43 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Lang/zh-cn.php ( 2.62 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Conf/debug.php ( 1.53 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Conf/debug.php ( 0.25 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Behavior/InitHookBehavior.class.php ( 1.49 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Behavior.class.php ( 0.90 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Cache.class.php ( 3.96 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Cache/Driver/File.class.php ( 6.08 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Model.class.php ( 69.13 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Db.class.php ( 5.83 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Db/Driver/Mysql.class.php ( 8.96 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Db/Driver.class.php ( 42.88 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Common/extend.php ( 29.84 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Product/Common/function.php ( 14.42 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/ReadHtmlCacheBehavior.class.php ( 6.21 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/CheckLangBehavior.class.php ( 3.04 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Lang/zh-cn.php ( 1.34 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Behavior/UrldecodeGetBehavior.class.php ( 0.91 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Product/Controller/ListController.class.php ( 16.15 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Controller/HomebaseController.class.php ( 9.56 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Controller/AppframeController.class.php ( 4.90 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Template.class.php ( 30.34 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Template/TagLib/Cx.class.php ( 23.21 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Think/Template/TagLib.class.php ( 9.42 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Lib/Taglib/TagLibSpadmin.class.php ( 2.04 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Lib/Taglib/TagLibHome.class.php ( 2.13 KB )
/home/zowoshmziomw5o0sth/wwwroot/data/runtime/Cache/Product/9b0e62e1a9dd7c3f4d5caa42c8a46939.php ( 18.16 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Lib/Util/Tree.class.php ( 13.97 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/WriteHtmlCacheBehavior.class.php ( 1.46 KB )
/home/zowoshmziomw5o0sth/wwwroot/application/Common/Behavior/TmplStripSpaceBehavior.class.php ( 1.07 KB )
/home/zowoshmziomw5o0sth/wwwroot/simplewind/Core/Library/Behavior/ShowPageTraceBehavior.class.php ( 5.38 KB )

SHOW COLUMNS FROM `zowo_plugins` [ RunTime:0.0009s ]
SELECT `name`,`hooks` FROM `zowo_plugins` WHERE ( status=1 ) [ RunTime:0.0002s ]
SHOW COLUMNS FROM `zowo_product` [ RunTime:0.0007s ]
SELECT * FROM `zowo_product` WHERE ( id = 159 and pro_status=1 ) LIMIT 1 [ RunTime:0.0005s ]
SHOW COLUMNS FROM `zowo_pro_relation_attr` [ RunTime:0.0006s ]
SELECT ra.id,ra.aid,a.name,ra.pid,ra.max,ra.min,a.unit FROM zowo_pro_relation_attr ra LEFT JOIN zowo_pro_attr a on a.id=ra.aid WHERE ( a.status=1 and ra.status=1 and ra.pid in(159) ) ORDER BY orderby,id [ RunTime:0.0005s ]
SHOW COLUMNS FROM `zowo_pro_relationships` [ RunTime:0.0004s ]
SELECT `cid` FROM `zowo_pro_relationships` WHERE ( object_id=159 and status=1 ) LIMIT 1 [ RunTime:0.0002s ]
SELECT p.id,r.cid,`pro_title` FROM zowo_product p left JOIN zowo_pro_relationships r on r.object_id=p.id WHERE ( pro_status=1 and r.cid in(27) and r.status=1 and id<>159 ) ORDER BY pro_recommended desc,r.listorder desc,p.id desc [ RunTime:0.0009s ]
SHOW COLUMNS FROM `zowo_pro_cat` [ RunTime:0.0005s ]
SELECT `id`,`parent`,`attrs`,`seo_title`,`name`,`seo_keywords`,`seo_description` FROM `zowo_pro_cat` WHERE ( id=27 and status = 1 ) ORDER BY recommended desc,listorder,id LIMIT 1 [ RunTime:0.0001s ]
SELECT `id`,`name` FROM `zowo_pro_cat` WHERE ( parent=0 and status=1 and type=0 ) ORDER BY recommended desc,listorder,id [ RunTime:0.0001s ]
SELECT `parent`,`id`,`name` FROM `zowo_pro_cat` WHERE ( status=1 and type=0 and parent = 7 ) ORDER BY recommended desc,listorder,id [ RunTime:0.0001s ]
SHOW COLUMNS FROM `zowo_pro_attr` [ RunTime:0.0004s ]
SELECT `id`,`id`,`name`,`range`,`unit` FROM `zowo_pro_attr` WHERE ( id in(10,11) ) ORDER BY orderby,id [ RunTime:0.0001s ]
SELECT `id`,r.cid,`pro_title`,`pro_image` FROM zowo_product p left JOIN zowo_pro_relationships r on r.object_id=p.id WHERE ( id in(145,147,149,150,152,153,155,156,157,158) and pro_status=1 ) ORDER BY pro_recommended desc,r.listorder desc,p.id desc [ RunTime:0.0010s ]
SELECT ra.id,ra.aid,a.name,ra.pid,ra.max,ra.min,a.unit FROM zowo_pro_relation_attr ra LEFT JOIN zowo_pro_attr a on a.id=ra.aid WHERE ( a.status=1 and ra.status=1 and ra.pid in(152,155,145,150,153,157,149,156,158,147) ) ORDER BY orderby,id desc [ RunTime:0.0001s ]
UPDATE `zowo_product` SET `pro_hits`=pro_hits+1 WHERE ( id=159 ) [ RunTime:0.0006s ]
SELECT `path` FROM `zowo_pro_cat` WHERE `id` = '27' LIMIT 1 [ RunTime:0.0001s ]
SELECT * FROM `zowo_pro_cat` WHERE `id` IN ('0','7','27') ORDER BY path ASC [ RunTime:0.0000s ]
SHOW COLUMNS FROM `zowo_ad` [ RunTime:0.0005s ]
SELECT `ad_id`,`ad_img`,`ad_url`,length(ad_content) as content_len FROM `zowo_ad` WHERE ( status=1 and length(ad_img) and ad_img is not null and cat_ids like '%"27"%' ) ORDER BY orderby desc,ad_id LIMIT 1 [ RunTime:0.0001s ]
SHOW COLUMNS FROM `zowo_options` [ RunTime:0.0004s ]
SELECT `option_value` FROM `zowo_options` WHERE `option_name` = 'cdn_settings' LIMIT 1 [ RunTime:0.0001s ]
SELECT `id`,`id`,`name` FROM `zowo_pro_cat` WHERE ( status=1 and parent=0 and type = 0 ) ORDER BY recommended desc,listorder,id [ RunTime:0.0006s ]
SELECT `id`,`id`,`parent`,`name` FROM `zowo_pro_cat` WHERE ( parent in(4,5,6,7,8,11,40,42,44,46) and status=1 ) ORDER BY recommended desc,listorder,id [ RunTime:0.0003s ]
SHOW COLUMNS FROM `zowo_pro_keyword` [ RunTime:0.0007s ]
SELECT if(r.kid is null,0,count(r.kid)) as number,r.kid as id,k.name FROM zowo_pro_keyword k LEFT JOIN zowo_pro_relation_key r on k.id= r.kid and r.status=1 LEFT JOIN zowo_product p on p.id= r.pid WHERE ( k.type=1 and (p.id is null or p.pro_status = 1) ) GROUP BY k.id ORDER BY k.listorder desc,r.kid [ RunTime:0.0035s ]
SHOW COLUMNS FROM `zowo_links` [ RunTime:0.0013s ]
SELECT * FROM `zowo_links` WHERE ( link_status=1 ) ORDER BY listorder ASC [ RunTime:0.0001s ]
SELECT * FROM `zowo_pro_keyword` WHERE ( is_footer=1 ) ORDER BY listorder desc,id [ RunTime:0.0001s ]

货号			ZW20389-H1	ZW20389-H2	ZW20389-H3
特性	驾驶方式		站驾式
	额定载荷(Q)	kg	1500
	载荷中心(C)	mm	600
	前悬距(X)	mm	443
	轴距(Y)	mm	1342
重量	自重(不含电池)	kg	930	960	980
	桥荷满载(前/后)	kg	1126/1554	1138/1572	1147/1583
	桥荷空载(前/后)	kg	826/354	848/363	861/369
轮子	轮胎		聚氨酯轮
	驱动轮尺寸	mm	Φ250×80
	承载轮尺寸	mm	Φ80×70
	平衡轮尺寸	mm	Φ125×50
	轮子数量(前/后)(x=驱动轮)		1x-2/4
	前轮距	mm	690
	后轮距	mm	500
基本尺寸	总高(货叉最低时)(h1)	mm	2055	2155	2215
	自由提升高度(h2)	mm	1570	1670	1750
	起升高度(h3)	mm	4500	4800	5000
	最大高度(货叉最高时)(h4)	mm	4985	5285	5465
	货叉离地高度(最低时)(h5)	mm	86
	操作手柄离地高度(最大/最小)(h6)	mm	1350/985
	总长(L1)	mm	2023
	货叉前端面至前部距离(L2)	mm	873
	总宽(b1)	mm	850
	货叉尺寸(s/e/l )	mm	180/66/1150
	货叉外宽(b3)	mm	680
	最小离地间隙(m)	mm	30
	直角堆垛通道宽度，托盘(Ast)	mm	2300
	转弯半径(Wa)	mm	1610
性能	行驶速度满载/空载	km/h	5/5.5
	提升速度满载/空载	mm/s	120/150
	下降速度满载/空载	mm/s	150/125
	最大爬坡能力满载/空载	%	5月8日
	制动方式		电磁制动
电机	驱动电机功率	kw	1.2
	提升电机功率	kw	3
	蓄电池电压/容量	V/Ah	24/240
	蓄电池重量	kg	250
其它	控制方式		场效应管控制
其它	整车噪音	dB(A)	<70

产品主要配置清单：
序号	配置名称	品牌	产地
1	行走电机	—	中国
2	液压站	海普	意大利
3	齿轮箱	ZF	德国
4	控制器	CURTIS	美国
5	电量表	CURTIS	美国
6	接插件	安普	美国
7	加速器	FREI	德国
8	电池选配	FAAM	意大利
